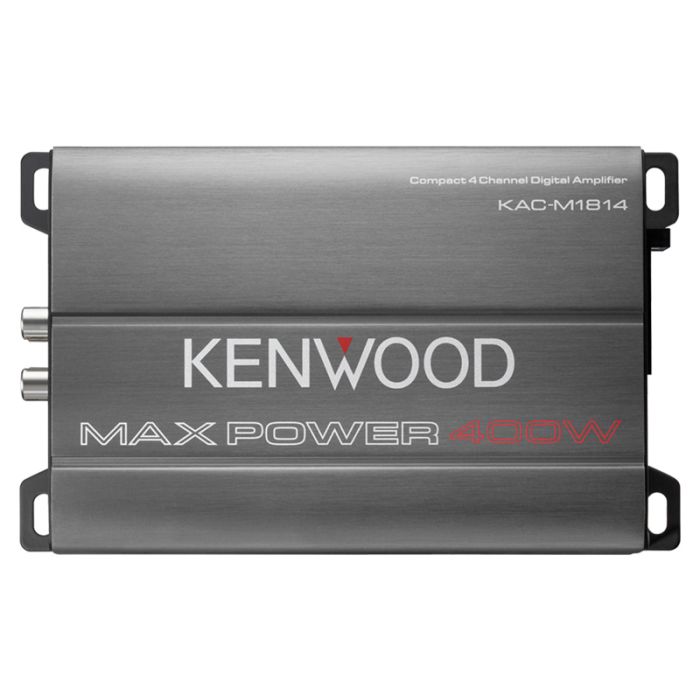

Kenwood KAC-M1814

Amplificator digital compact pe 4 Canale, 400W


Amplificatorul KAC-M1814 cu o putere muzicala de varf de 400W, creat pentru utilizatorii de automobile, ATV-uri, motociclete sau ca amplificator marin.



Amplificator digital pe 4 canale (Clasa D)
Putere maximă de ieșire 400W
4 x 45W @ 4 ohmi (standard CEA-2006)
Intrare RCA/nivel difuzor
Pornire/oprire detector semnal
Filtru Variabil Low-&High-Pass
Dimensiune compactă (145 x 45 x 99 mm)
Protecție cu acoperire


Caracteristici tehnice:



Key Features

4 channel digital (Class D) amplifier
Maximum output power 400W
4 x 45W @ 4ohm (CEA-2006 standard)
RCA / Speaker level input
Signal sensing turn-on/off
Variable Low- & High-Pass filter
Compact size (145 x 45 x 99mm)
Conformal coating protection
Amplifier Features

Class D Amplifier Yes
Full Range Digital Amplifier Yes
Load Capability 4Ω Stable
Maximum power output 400W
Rated power output (4Ω) 45W x 4 (4Ω)
CEA-2006 Compliant Yes
Low-pass Filter Yes
High-pass Fliter Yes
Switched Mode Power supply Yes, Power MOS-FET
Signal Sensing Turn-on Yes
Line in 4 RCA / Speaker level
Speaker level Input Yes
Die-Cast Aluminium Heat Sink Yes
DC cable Supplied Yes
Amplifier-Specifications

Rated power output (CEA-2006) 45Watts RMS x 4 at 4 ohms and 1% THD
Low-pass Filter 50~200Hz (-12dB/oct)
High-pass Fliter 50~200Hz (12dB/oct)
Input Impedance 10kΩ
Signal to Noise Ratio 98dB
Signal to noise ratio (CEA-2006) 82dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -3dB) 20Hz ~ 20Hz
Operating voltage 14.4V (11V ～ 16V allowable)
Maximum current consumption 15A
Dimensions (WxHxD) 145 x 45 x 99(mm),
Weight 0.7kg
Unit weight in individual package 0.99 kg
